Cockpit Simulator

CS 777X CDU (v2)

CS 777X CDU (v2)

$799.00 USD
$799.00 USD
促销 售罄

CS CDU Series, now in its 2nd generation with a full metal CNC machined shell that provides a 1:1 replica of the real aircraft. The buttons are made of silicone, identical to those on the real aircraft, providing a tactile feel close to the actual avionics parts. It features a plug-and-play operation with no software configuration. Power and data are transferred via a single USB cable.
查看完整详细信息
CS 777X CDU Training-Grade 1:1 Control Display Unit

CS 777X Control Display Unit | Plug-and-Play Flight Simulator Hardware

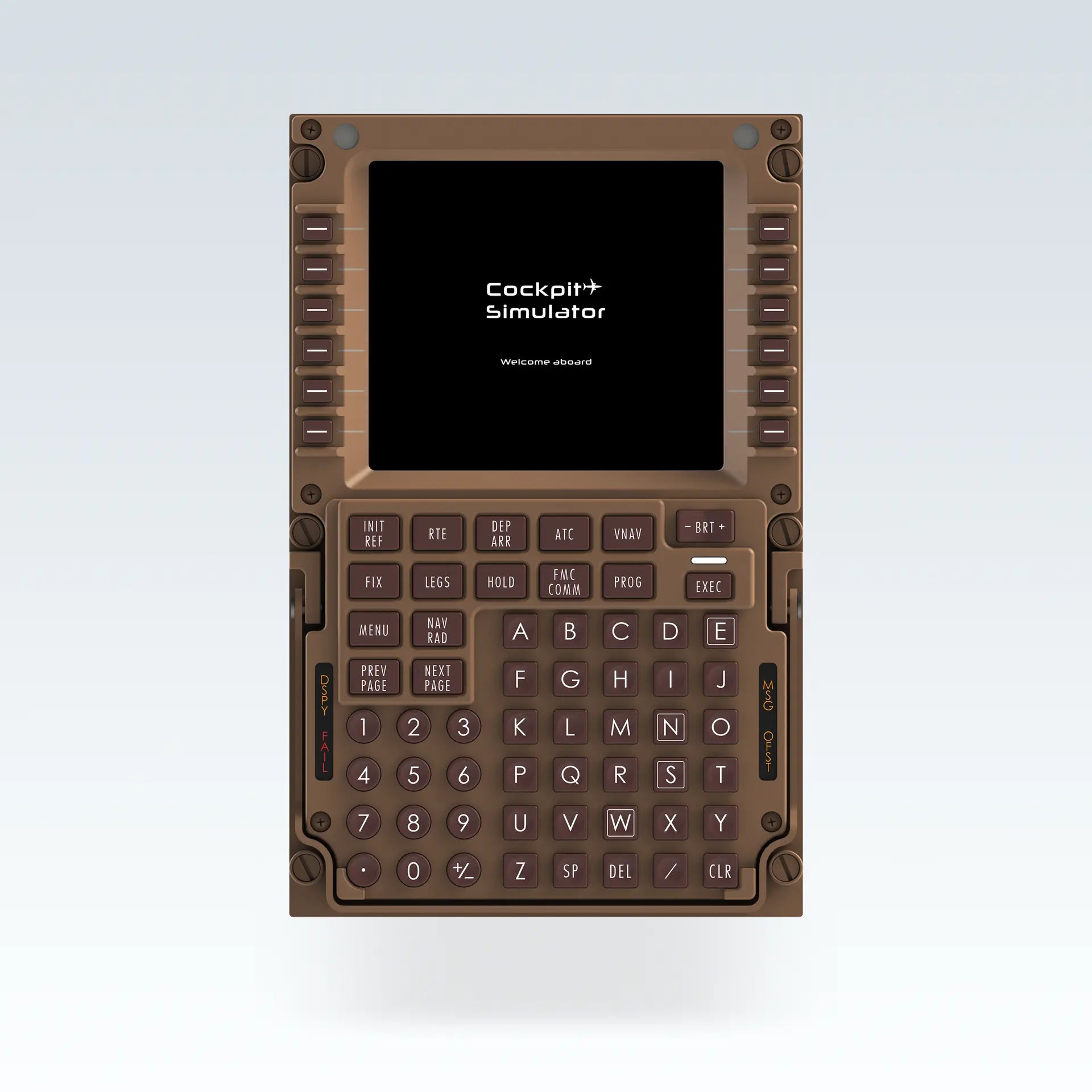

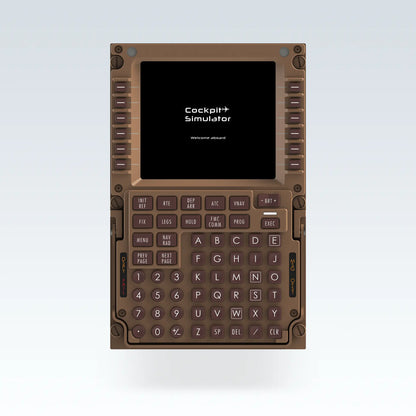

CS 777X CDU, now in its 2nd generation with a full metal CNC machined shell that provides a 1:1 replica of the real aircraft. The buttons are made of silicone, identical to those on the real aircraft, providing a tactile feel close to the actual avionics parts. It features plug-and-play operation with no software configuration. Power and data are transferred via a single USB cable.

Key Features

✓ Mass Production Design

✓ All-metal housing — crafted with Aluminum CNC Machining

✓ Electrostatic spraying enclosure

✓ Replicated metal handle appearance

✓ Replicated annunciator windows and colors

✓ Highly realistic appearance and texture of real aircraft avionics parts

✓ Carefully tuned highly realistic fonts

✓ Improved buttons for a more realistic feel

✓ Plug and play, no setup required — only a single USB Type-C connector

✓ No video transmission cable required

✓ Full color display

✓ Thin and lightweight appearance

✓ Meets EASA FTD Level 1 qualification requirements

✓ Meets FAA FTD Level 5 qualification requirements

Full CNC-Milled Aluminum Housing

CNC-milled from a single solid aluminum block to ensure maximum rigidity and long-term durability. The electrostatic-sprayed surface replicates the tactile feel and finish of real 777X avionics panels.

Full CNC-Milled Aluminum Housing
Authentic Silicone Keys and Full-Color Display

Authentic Silicone Keys & Full-Color Display

Designed with a 777X-style silicone keypad structure, the keys deliver soft travel, accurate rebound, and long-term durability. The upgraded full-color display provides sharper fonts, higher brightness, and realistic annunciator reproduction for clear cockpit-style readability.

No Settings Required — Simple Plug-and-Play Bridge Software

Plug and Play

Cockpit Simulator Bridge is an easy-to-use software — just open it, plug in your device, and it automatically connects to your flight simulation game and aircraft addon. It also features hardware testing and over-the-air device firmware updates.

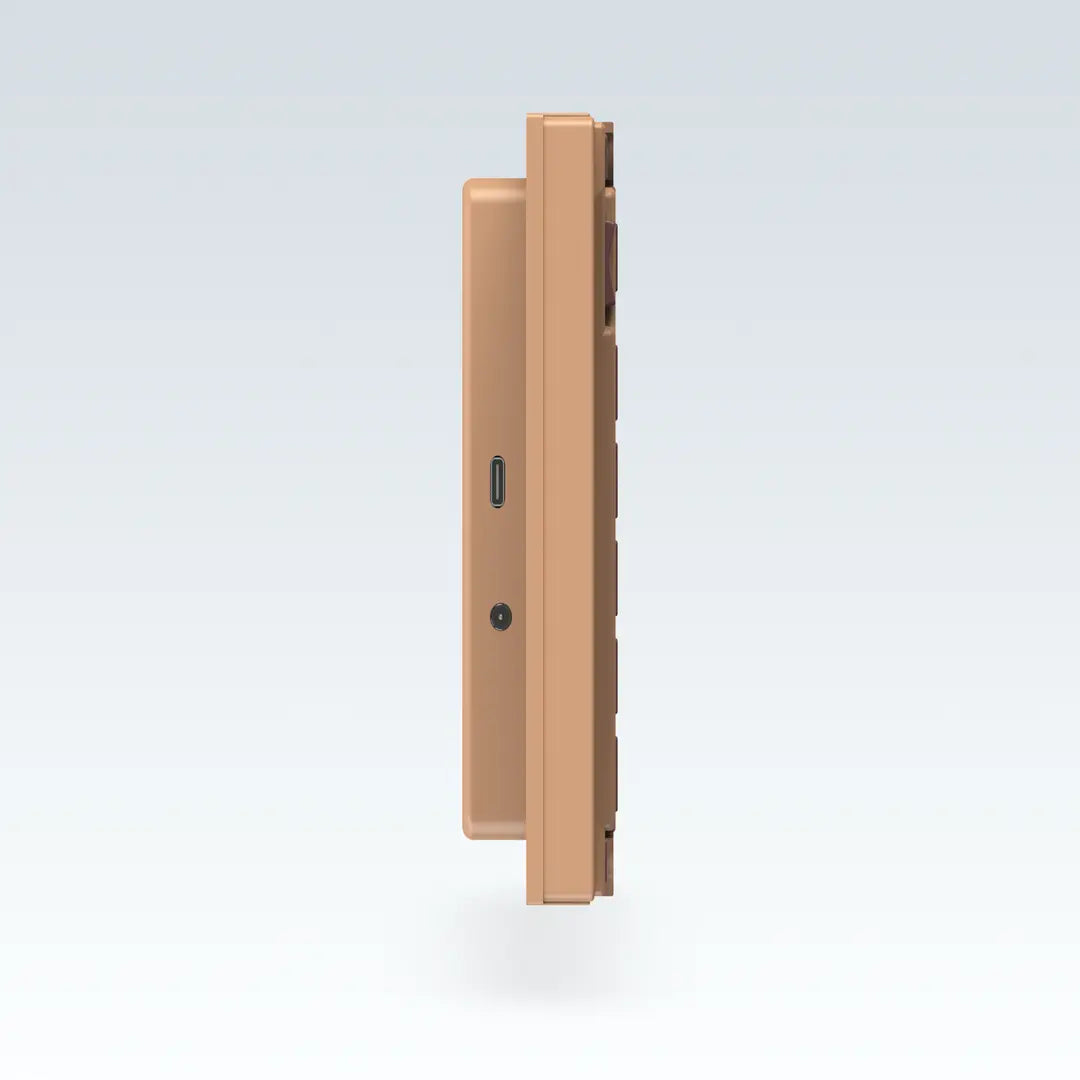

Power & Connection Modes

  • 1× USB 2.0 Type-C
  • 1× DC 3.5mm × 1.35mm power input (DC 9–24V, ≥ 0.8A)
777X CDU Connectors

USB Mode

Only requires a single USB cable — no VGA or HDMI video transmission required.

USB Mode

USB HUB Mode

When you have multiple Cockpit Simulator hardware devices and your computer’s USB ports are insufficient, use USB-HUB mode. Note that your USB-HUB must have an independent power supply to avoid insufficient power when multiple devices work simultaneously.

USB HUB Mode

Questions about installation or compatibility? Contact us anytime — we’re here to help.

Package Contents

Package Contents
  • 1× 1.5m USB Type-A to Type-C cable
  • 1× Bracket for placing on desktop stand
  • 2× Screws for bracket mounting
  • 2× Screw washers
  • 1× Desktop stand
  • 1× CS 777X CDU (v2)

Product Dimensions & Weight

  • Width: 145.8mm
  • Depth: 228mm
  • Height: 36mm
  • Weight: 0.8 kg

Package Dimensions & Weight

  • Width: 330mm
  • Depth: 235mm
  • Height: 72mm
  • Weight: 1.5kg
Product Dimensions
777X CDU Dimensions Diagram

System Requirements

Windows 10 (64-bit) or later

Interface: USB 2.0 port

Storage: 50MB disk space

AIRCRAFT ADDON SUPPORT LIST

Aerowinx Precision Simulator 10 (PSX)

Aerowinx B744

(with bridge software v2025.2.0 and later)

(requires Precision Simulator version 10.180 and above)

ProSim

ProSim737

(with bridge software v2024.4.0 and later)

(requires ProSim737 version 3.27 and above)

(requires ProSimCDU running with role "Captain CDU" for the left side)

(requires ProSimCDU running with role "F/O CDU" for the right side)

ProSimB38M

(with bridge software v2025.2.2 and later)

(requires ProSimB38M version 1.33 and above)

(requires ProSimCDU running with role "Captain CDU" for the left side)

(requires ProSimCDU running with role "F/O CDU" for the right side)

Microsoft Flight Simulator 2024

PMDG 777 for MSFS 2024

(with bridge software v2025.2.2 and later)

(including but not limited to: 777-200ER, …)

PMDG 737 for MSFS 2024

(with bridge software v2026.1.0 and later)

(including but not limited to: -600, -700, -800, -900, …)

iFly 737 MAX8 for MSFS 2024

(with bridge software v2025.2.3 and later)

Microsoft Flight Simulator (2020)

PMDG 737 for MSFS

(with bridge software v2022.2.0 and later)

(including but not limited to: -600, -700, -800, -900, …)

PMDG 777 for MSFS

(with bridge software v2024.5.0 and later)

(including but not limited to: 777-200ER, 777-300ER, 777F, …)

iFly 737 MAX8 for MSFS

(with bridge software v2024.7.4 and later)

X-Plane (11 / 12)

B737-800X ZIBO mod

(with bridge software v2022.1.0 and later)

Threshold LevelUp 737NG

(with bridge software v2025.1.1 and later)

IXEG 737 Classic

(with bridge software v2022.1.0 and later)

Prepar3D (v1 to v5) / Flight Simulator X

PMDG 737NGX

(with bridge software v2022.1.0 and later)

PMDG 737NGXu

(with bridge software v2022.1.0 and later)

PMDG 747-400

(with bridge software v2022.1.0 and later)

PMDG 747-8

(with bridge software v2022.1.0 and later)

PMDG 777

(with bridge software v2022.1.0 and later)

iFly Jets – The 737NG

(with bridge software v2023.1.1 and later)

About Cockpit Simulator

The members of Cockpit Simulator come from all over the world, and the core designers have work experience in professional avionics companies, full flight simulator companies, aircraft maintenance engineering companies, and well-known software companies. At the same time, we are also flight simulation enthusiasts.

We are dedicated to making the most realistic simulation equipment for flight simulation enthusiasts. The feature of our products is infinitely closer to the functionality and feel of a real aircraft and at a low price.

We will complete each module of the cockpit step by step, so that every flight simulation enthusiast can build a flight simulator at home.

We will focus on product strength and continue to achieve excellent quality to provide top flight simulation products for flight enthusiasts and pilots.

Warranty

1. Warranty Period​
This product is covered by a two-year warranty starting from the actual date of purchase by the customer.
The warranty period shall be determined based on a valid proof of purchase provided by the customer (such as an invoice, order record), using the purchase date shown on the document.

​2. Warranty Coverage​
During the warranty period, after-sales service will be provided if the product experiences any of the following issues under normal use:

  • Performance failure or quality issues caused by non-human factors;
  • Issues that are confirmed by our after-sales inspection to be inherent product quality defects.

The following situations are not covered by the warranty:

  • Damage caused by human factors, including but not limited to dropping, water damage, unauthorized disassembly, modification, or alteration;
  • Malfunctions caused by improper use or failure to follow the product user manual;
  • Damage caused by force majeure events, such as fire, lightning, floods, or other natural disasters;
  • Products that have exceeded the warranty period;
  • Cases where valid proof of purchase cannot be provided or the purchase information cannot be verified.

​3. After-Sales Service Method​

  • For products that meet the warranty conditions within the warranty period, replacement service will be provided in principle;
  • The replacement product will be of the same model. If the original model is discontinued or out of stock, a replacement with equal or higher performance will be provided.

​4. After-Sales Service Procedure (Important)​​
To ensure fairness and standardization of after-sales service, the replacement process is as follows and is effective immediately:

​4.1 After-Sales Request​
Customers must contact our official after-sales email and provide the following information:

  • Description of the product issue;
  • Valid proof of purchase (invoice, order record, etc.);
  • Contact information and delivery address (including full name, phone number, and email address).

​4.2 Return of the Defective Product​
Customers must return the defective product to the address designated by our company according to the after-sales instructions;
If the defective product is not returned, the company will no longer provide advance replacement service.

​4.3 Product Inspection​
Upon receipt of the returned product, our company will conduct inspection and verification.

​4.4 Replacement Shipment​

  • If the inspection confirms that the issue falls within the warranty coverage, a new replacement product will be shipped after the inspection is completed;
  • If the product does not meet the warranty conditions, the customer will be contacted to discuss further solutions, such as paid repair or replacement.

​5. Shipping Cost Policy​

  • Return shipping of the defective product: In principle, the cost shall be borne by the customer;
  • Shipping of the replacement product: The cost shall be borne by our company.

​6. Customs Duties and Taxes Policy​

  • Customs duties and taxes for returning the defective product: Any customs duties, import taxes, or related charges incurred when returning the defective product shall be borne by our company.
  • Customs duties and taxes for shipping the replacement product: Any customs duties, import taxes, or related charges incurred when shipping the replacement product shall be borne by the customer.

7. Method of Warranty

  • To submit a Warranty claim, contact CS Technical Support (“CS Support”) via email at info@flylanta.com.
